Railways

1 Rail Survey and Asset Inventory

Tools adapted to rail survey to perform geo-referenced asset inventories and produce exhaustive, structured, quantified and qualified GIS data layers of Rail Infrastructures.

  • Lineside signals – semaphore signals, light signs, junction indicators;
  • Equipment – fence, banners, switches and crossing, railway barrier, catenary;
  • Constructions – tunnels, bridges, buildings;
  • Vegetation – trees, grove of trees, hedges.

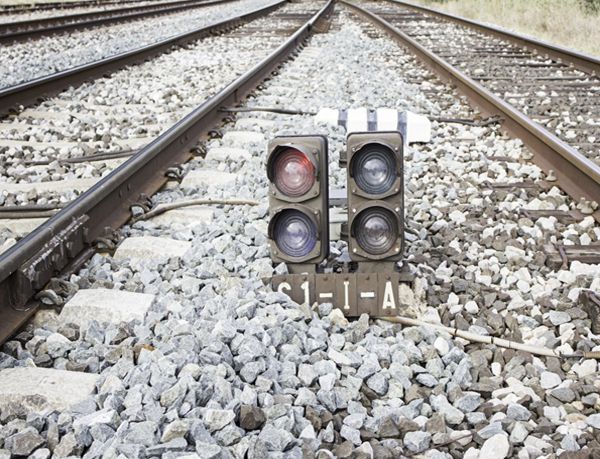

Traffic lights

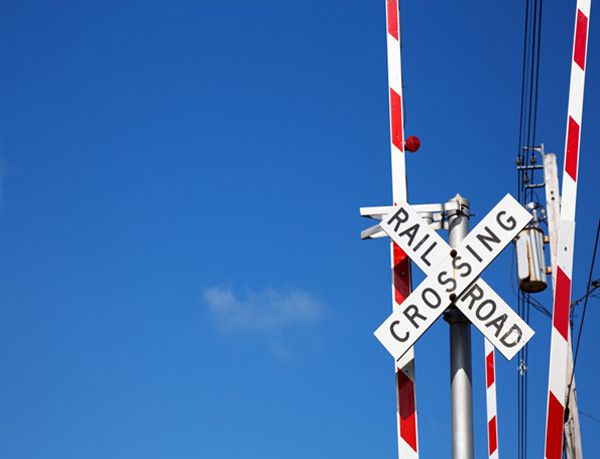

Railway crossings

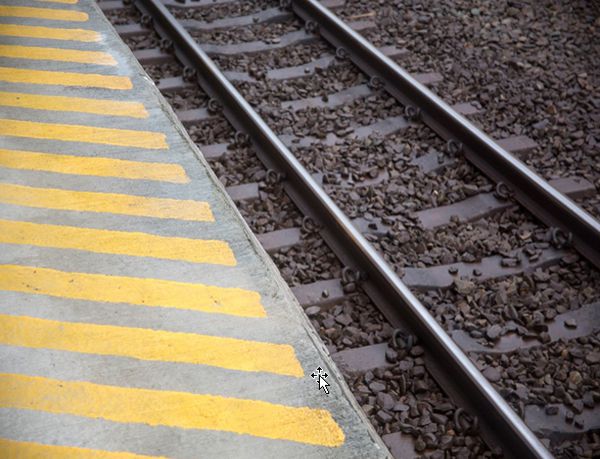

Rail platform

2 Infrastructures Assessment and Studies

Study and Analyze the railway condition

  • Assess the network and choose appropriate maintenance criteria;
  • Visual control of rail, lineside, sleepers, attachment bolts, railway points;
  • Map defaults, missing signs, abnormalities;
  • Evaluate fixing costs;
  • Study and establish an order of priority for repairs.


Work either in Geographical Coordinates or Linear Coordinates (LRS) – Node number + km/miles

  • Mileposts geo-referencing;
  • Features assigned to LRS coordinates.

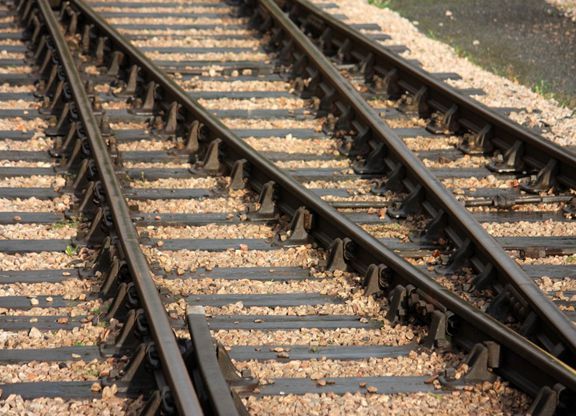

Rails

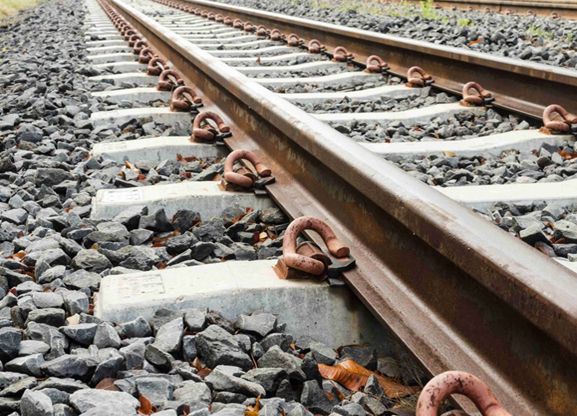

Rail details

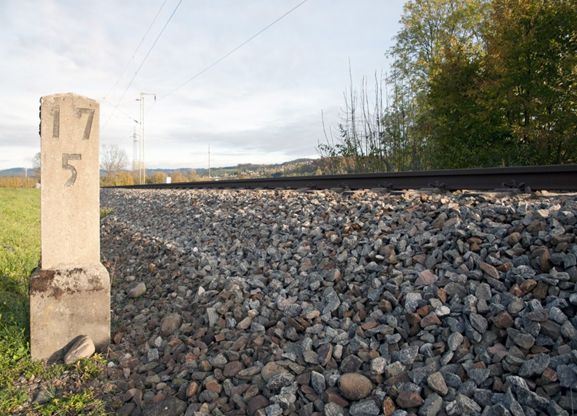

Shutter stock

3 Work control and monitoring

Work Preparation

  • Get a quantitative overview of the network;
  • Provide visual supports and documents to help perform work specifications;
  • Make planning and budgeting.


Work Monitoring

  • Follow-up of the construction site;
  • Inspect subcontractors;
  • Memorize work at different phases.


Work Reception

  • Inventory and assess deliverable;
  • Control work specifications.

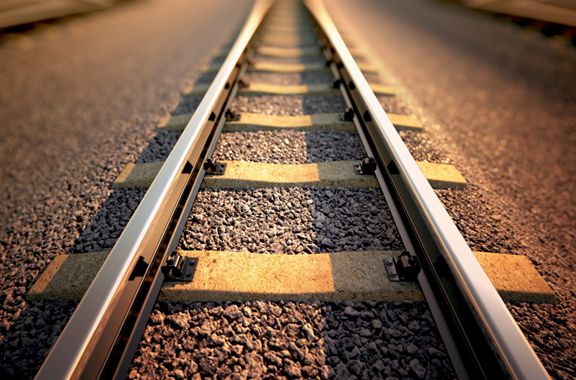

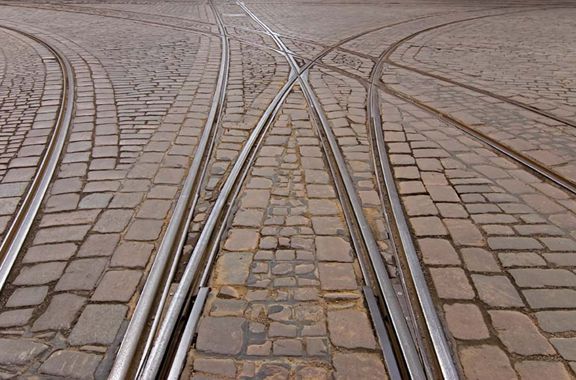

New works
