imajview

imajview® is a photogrammetric software suite developed to extract GIS data from imajbox® surveys. It allows the exploitation of these readings for transportation infrastructures and utilities inventory, studies and maintenance purposes.

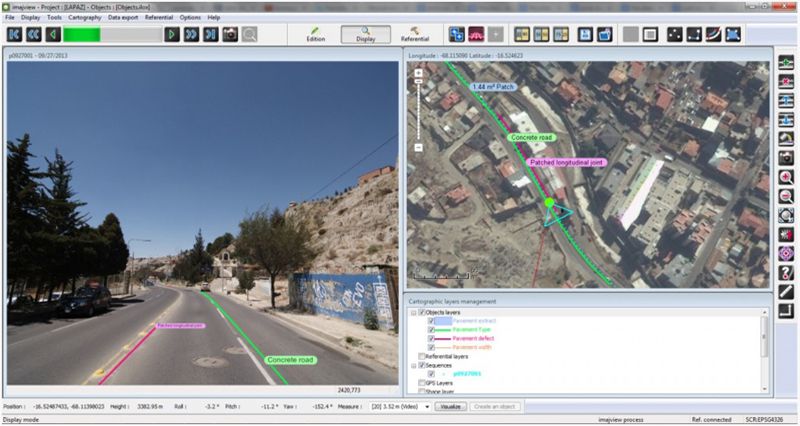

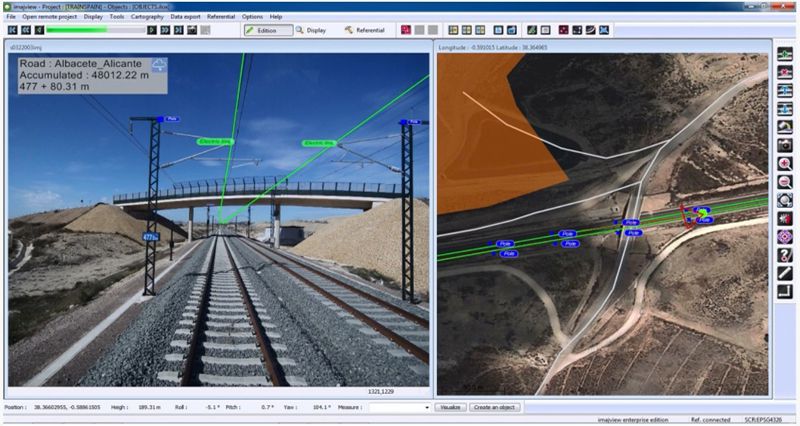

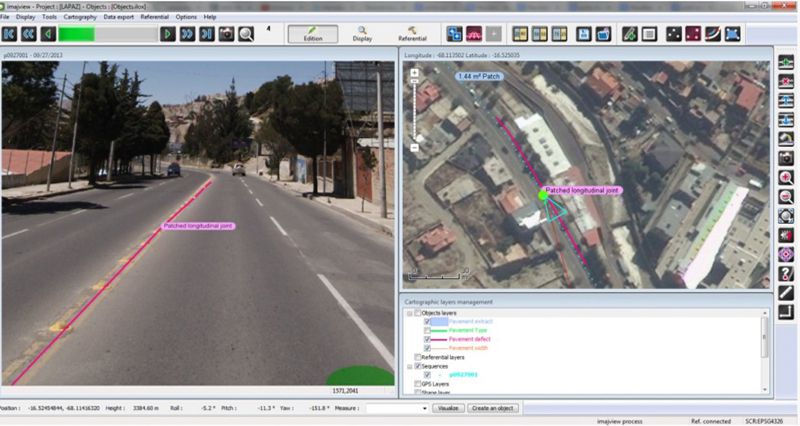

imajview® synchronizes field images with any map content. An integrated photogrammetric tool enables it to extract 3D coordinates and qualify objects with a customizable GIS data model.

imajview® provides flexibility and efficiency for any GIS project

imajview is a photogrammetric and GIS mapping software suite developed to process and use imajbox surveys for transportation infrastructures and utilities asset inventory, study and maintenance purpose. It contains a tool box enabling to perform multi-thematic projects with GIS data. imajview synchronizes imajbox corridor images and any map content.

Discover imajing 3D pro Integrated in imajnet®

  Brochure
Field Viewing Tool
  • Navigation in the surveys. Search by coordinates or LRS.
  • Import existing data layers and overlap with map backgrounds and field surveys.
  • Measurements on maps and in images.
Editing Tool
  • Digitize the environment.
  • Edit and create GIS layers from images or map.

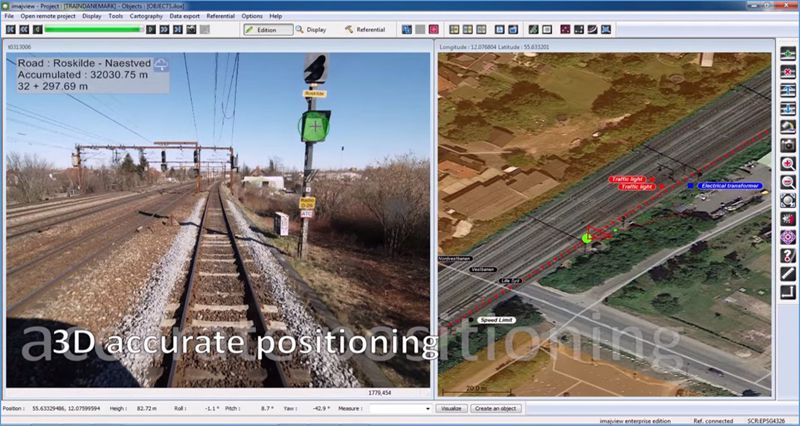

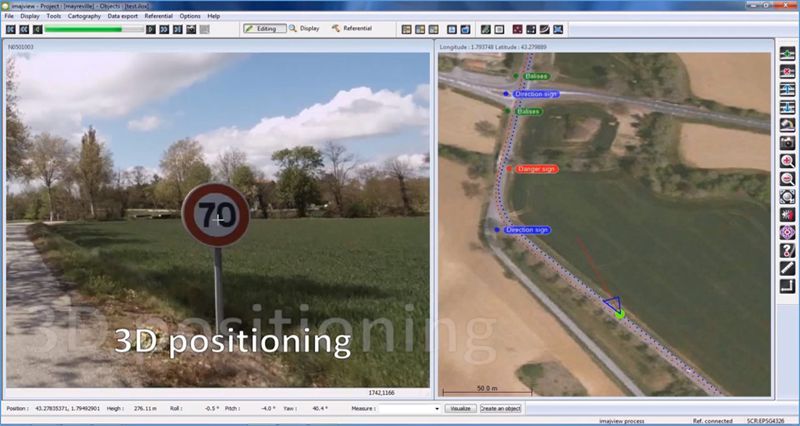

  • Qualify, measure and position objects in 3D.

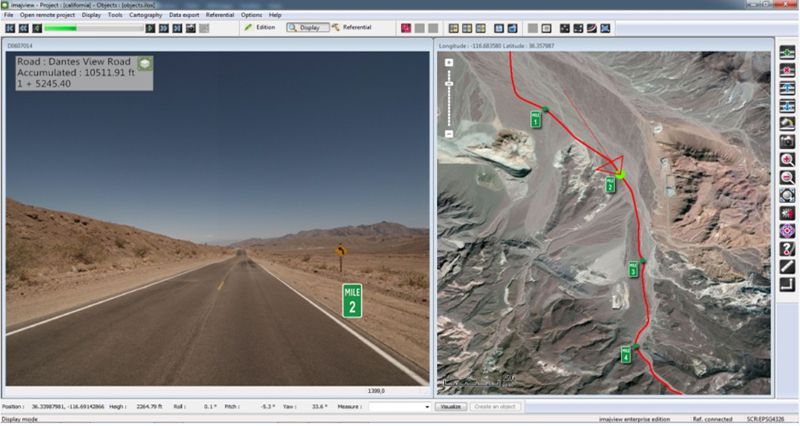

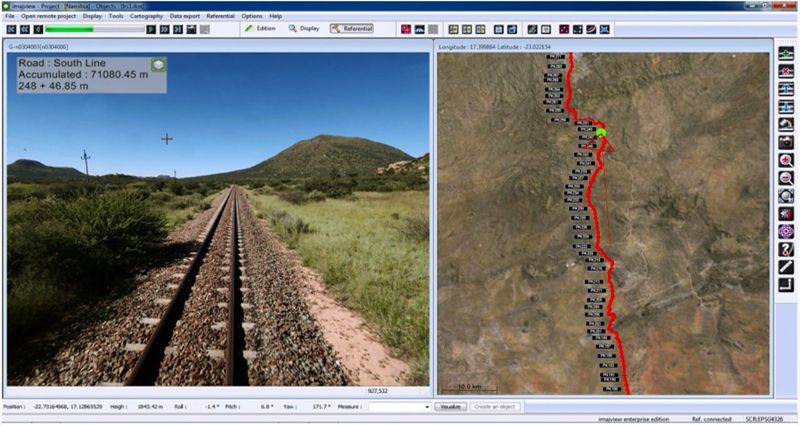

  • Create a Linear Referencing System (kilometric post + distance).
Production Tool
  • Produce GIS data.
  • Qualify, measure and characterize 3D features.
  • Work either in geographical coordinates or linear coordinates (LRS).

External data

Imajbox surveys
Vector layers
Raster layers
WMS service (OpenStreetMap)

imajview

GIS  layers edition
GIS layers creation
3D measurements
Qualification

Data end-use

Publish online
(images, LRS)
Export
(GIS data, images, LRS)

TRANSVERSE

Field images and GIS data fusion

PRODUCTIVE

Multi-thematic projects management

PRACTICAL

GIS layers import, processing and export

STAND-ALONE

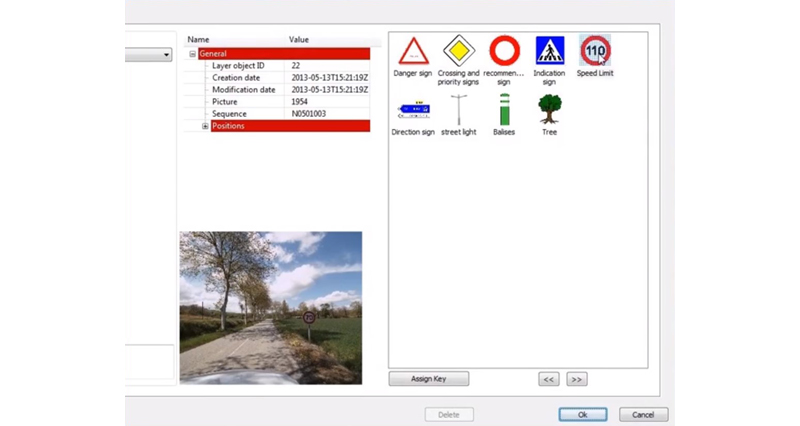

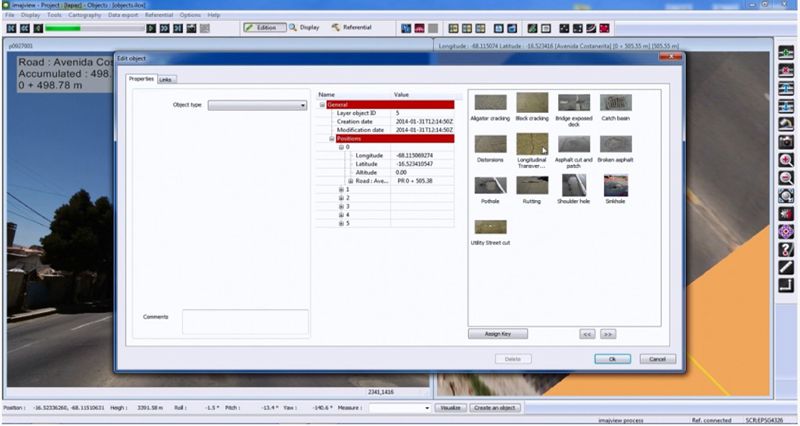

Data Model Customization

LRS Construction

3D Measurements

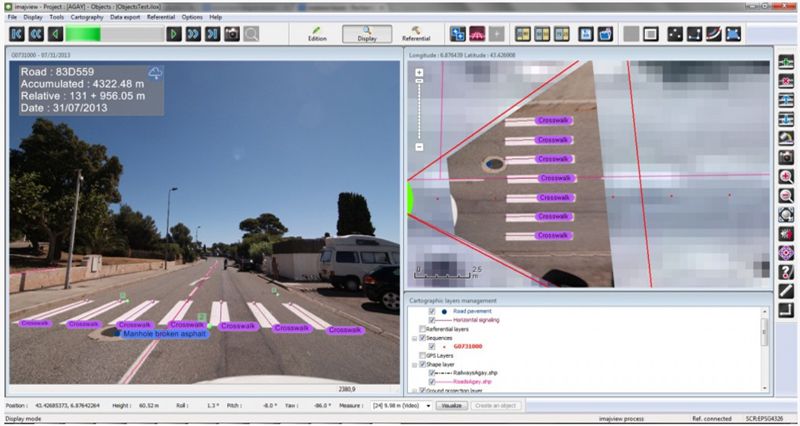

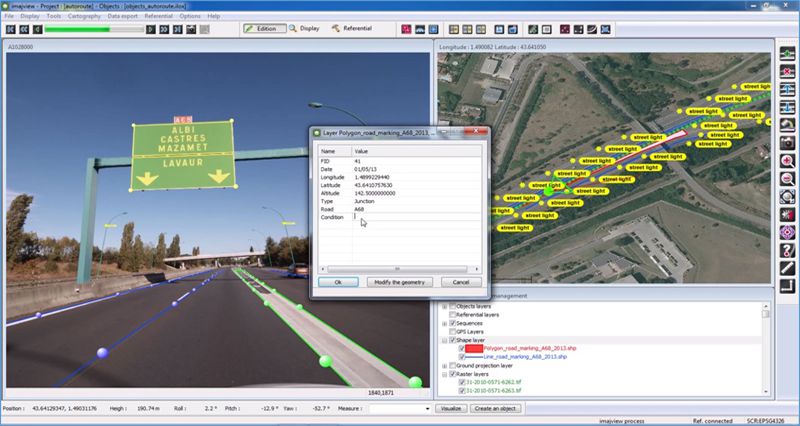

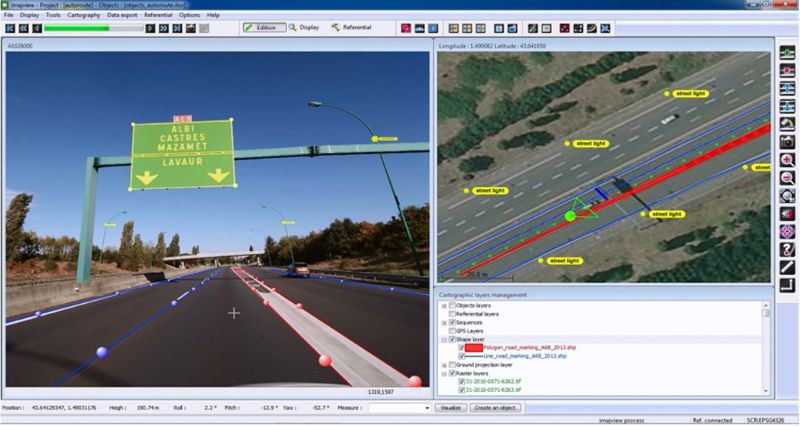

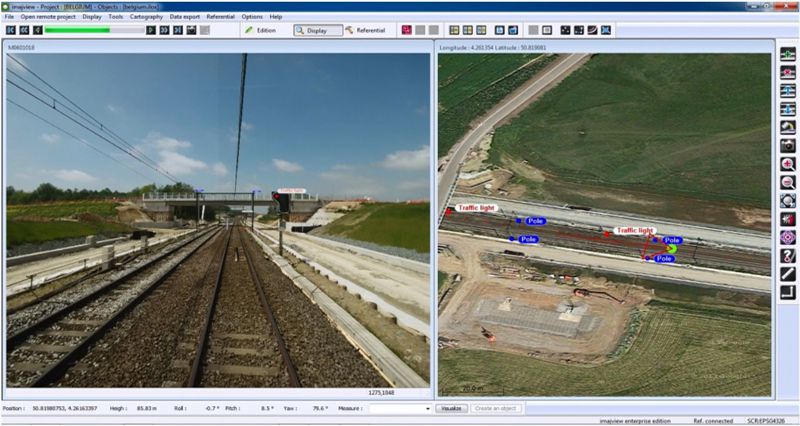

GIS Data Layers Construction

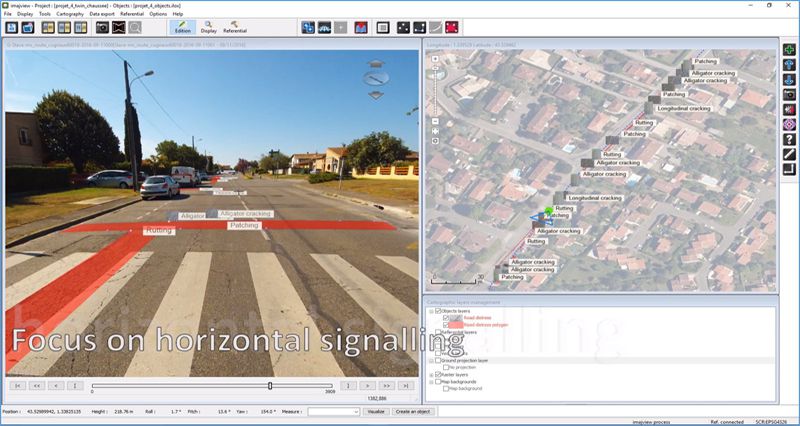

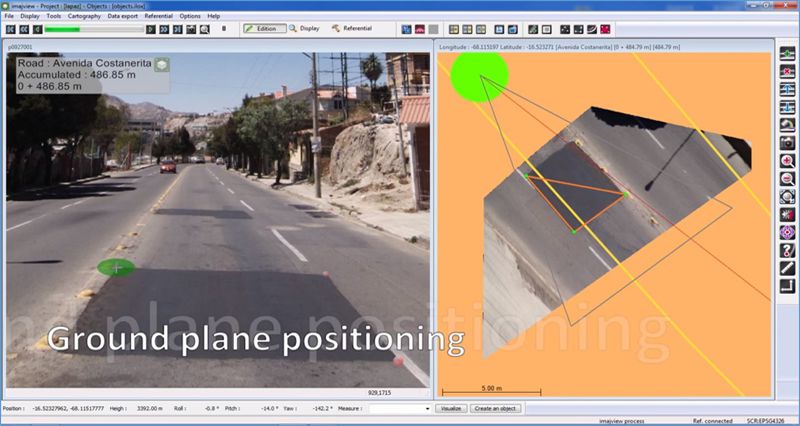

Conditions

Other Use

Existing data import
  • imajbox® surveys (trackline, images, panoramic reconstruction).
  • On the fly reprojected vector layers (shape, shape M, shape Z, dxf, geodatabase, kml, osm, tab, spatial database connector - ODBC compatible, edigeo).
  • Raster layers (geo-tiff, ecw).
  • WMS client 1.1 and 1.3
  • OpenStreetMap background maps.
  • External sensors data (csv, iex).
Deliverables

EXPORT

  • Geo-referenced feature layers (points, lines, polygons).
  • imajbox® images.
  • Linear Referencing System in various formats: shape, shape M, shape Z, csv, gpx, kml, png and jpg.
  • Point clouds with imajing 3D Pro.


ONLINE PUBLICATION

  • Linear Referencing System (LRS)
  • imajbox® surveys.
GIS DATA PROCESSING

Data editing and extraction

  • Imported vector layers merged with images and map.
  • 3D GIS layers (points, lines, polygons) from images.

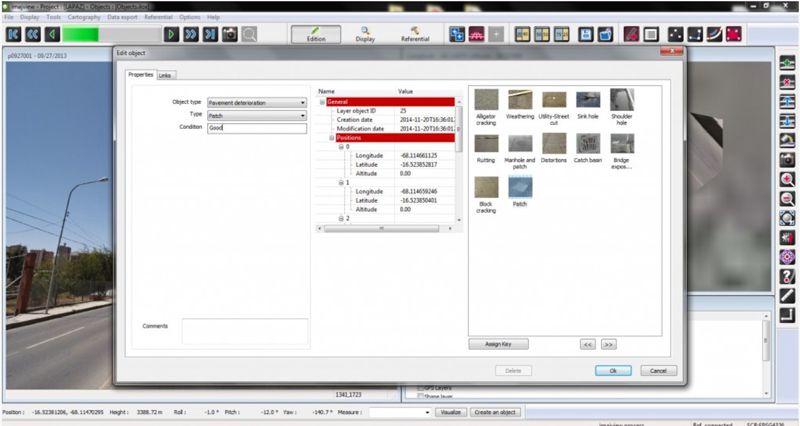

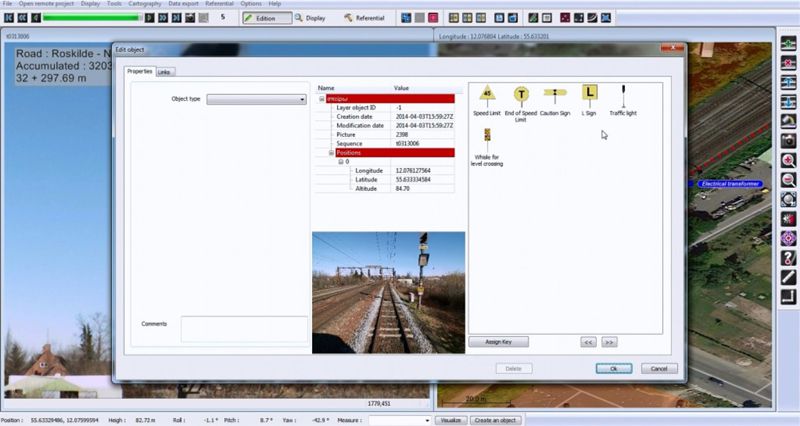

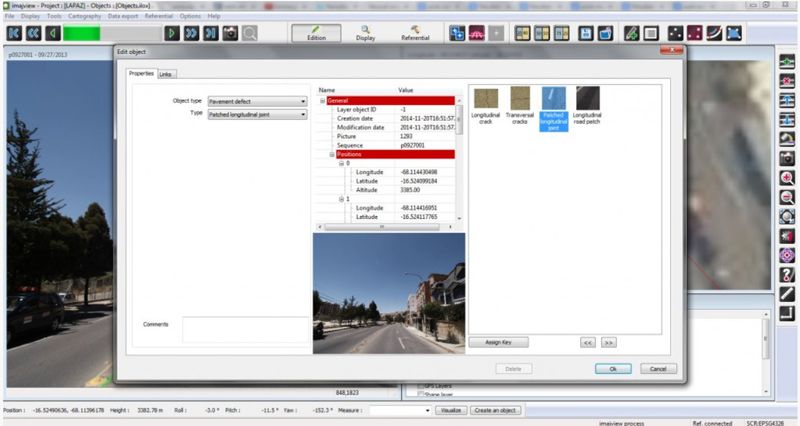

  • Every created feature can be fully associated with a GIS data model fully customizable according to the project need's.
  • Linear Referencing System (LRS)
  • Calibrated ground ortophoto

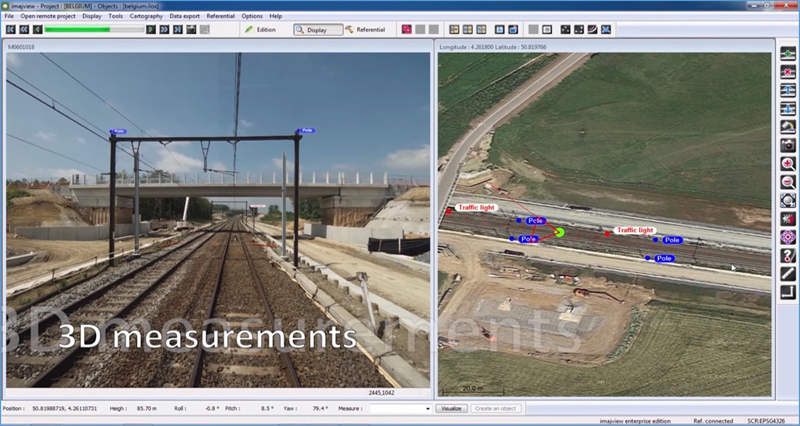

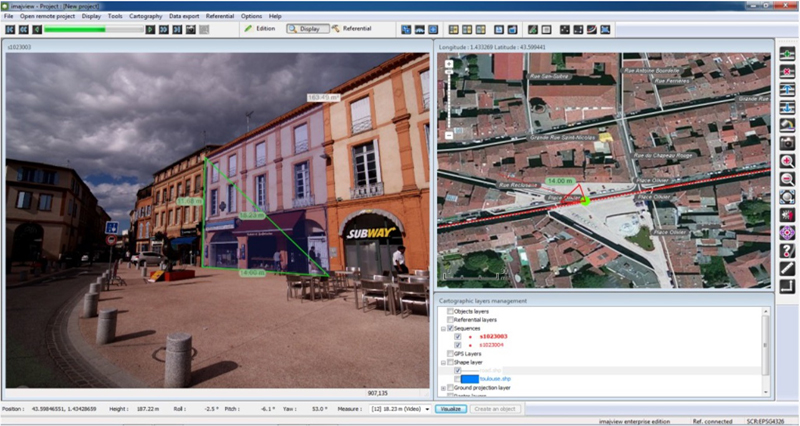

3D measurements

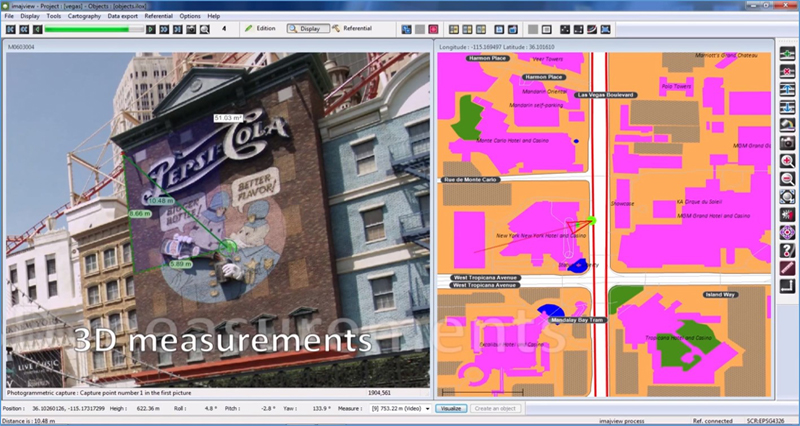

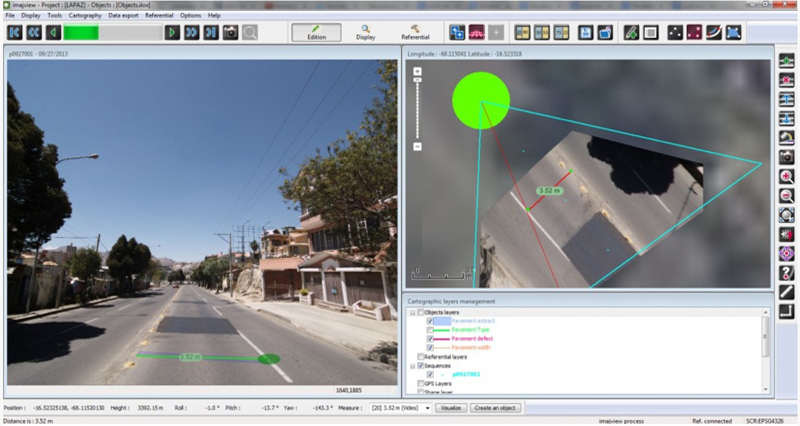

  • Photogrammetric tool that enables 3D measurements (width, height, lenght, surface) with a centimetric accuracy.
ADVANCED FEATURES

imajview® was developed to ensure a great efficiency for GIS data processing:

  • Simplify and automate many GIS tasks.
  • Configure a clear and readable interface.
  • Create shortcuts and automation.
  • Select features via thumbnails.
TECHNICAL SPECIFICATIONS
  • Operating system: Windows 10 (64 bits).
  • Minimal requirements: 8 GB RAM / Core i5
