imajbox

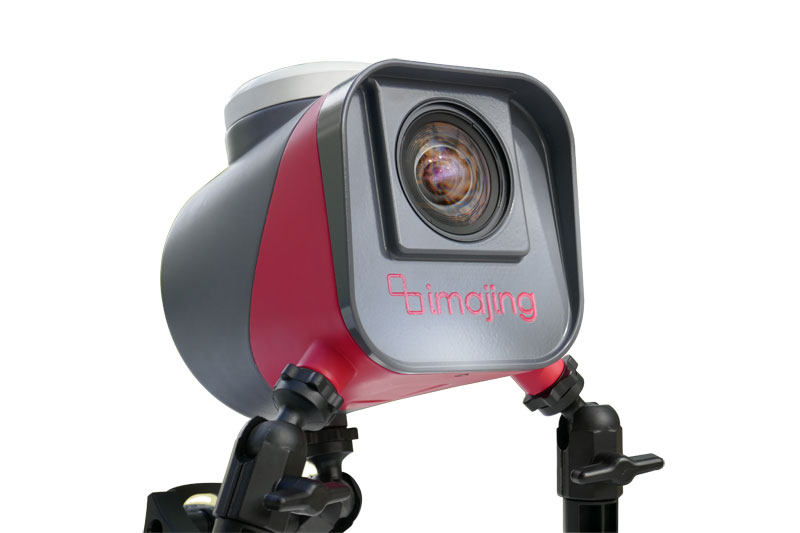

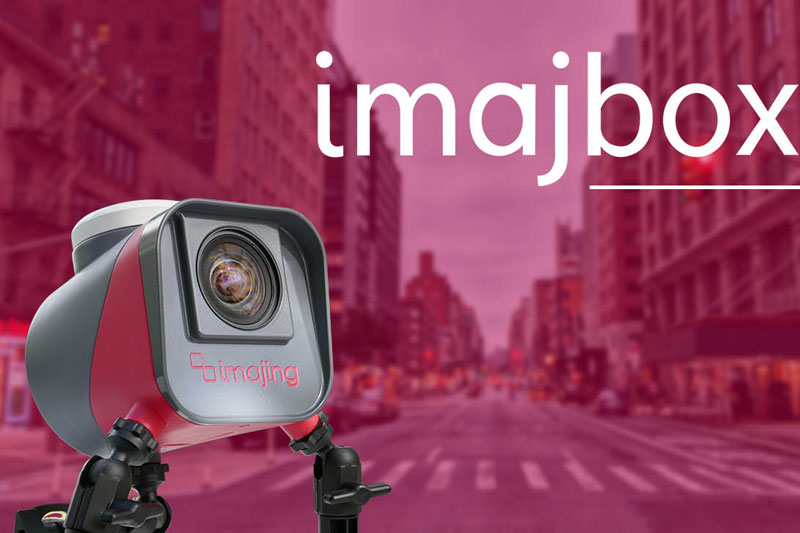

imajbox® is a compact, standalone and ready-to-use mobile mapping system (MMS) designed to perform high speed data collection for transportation infrastructures management.

Thanks to a high-level integration, innovative positioning algorithms and image processing technologies, imajbox® has been sized to give flexibility and ease-of-use to its users, and can be installed on any transportation means (car, truck, quad, bike, motorbike, train or boat).

GNSS
+ Inertial
+ vision
Imajbox® merges data captured by a set of sensors to ensure accurate and continuous positioning – a factory calibrated inertial measurement unit (IMU), a GNSS receiver and a barometric sensor – and operates a patented self-calibration algorithm using the image flow.

ImajBox General:
(General Brochure all products)

  Brochure

imajing IMU
DX2 is the second generation of imajing MEMS IMU. It combines accuracy, repeatability and robustness. Its factory calibration enables a compensated temperature drift from -40°C to +70°C, a controlled drift and a regular auto recalibration. It is combined with inhouse image flow tracking technology.

DX3 is an improved version of DX2 IMU with a filtering model adapted to trains and boats' specific dynamic.

DX4 is the highest end IMU to be combined with RTK positioning solutions.

4 versions of imajbox are available

imajbox T

Imajbox T PDF
Road, Rail, Canal
5 MPX CCD
80o HFoV
imajing IMU DX3 GPS/SBAS+GLO+DGPS
High-end plate antenna


imajbox 3S

Imajbox 3S PDF
Road
8.9 MPX CMOS GS
100o HFoV
imajing IMU DX3
GPS/SBAS+GLONASS+Galileo+DGNSS


imajbox 3TX

Imajbox 3TX PDF
Road, Rail, Canal
8.9 MPX CMOS GS
100o HFoV
imajing IMU DX3
GPS/SBAS+GLONASS+Galileo+DGNSS+BeiDou+QZSS


imajbox 3TX+

Imajbox 3TX+ PDF
Road, Rail, Canal
8.9 MPX CMOS GS
100o HFoV
imajing IMU DX4
GPS/SBAS+GLONASS+Galileo+DGNSS


General specifications

Dim 175x165x145mm
Weight 2kg
Battery 3 hours standalone
Internal storage 128 SSD

For more information please read imajbox technical specifications

ACCURATE

An accurate and continuous spatial positioning made possible by proprietary algorithms, allowing the fusion of the sensors' raw data (GNSS, IMU, images)

SIMPLE

Independant, stand-alone and autocalibrated

PRODUCTIVE

High speed surveys for large scale data collection.

CONNECTED

Controlled by Wi-Fi and connectors for external sensors integration.

ADJUSTABLE

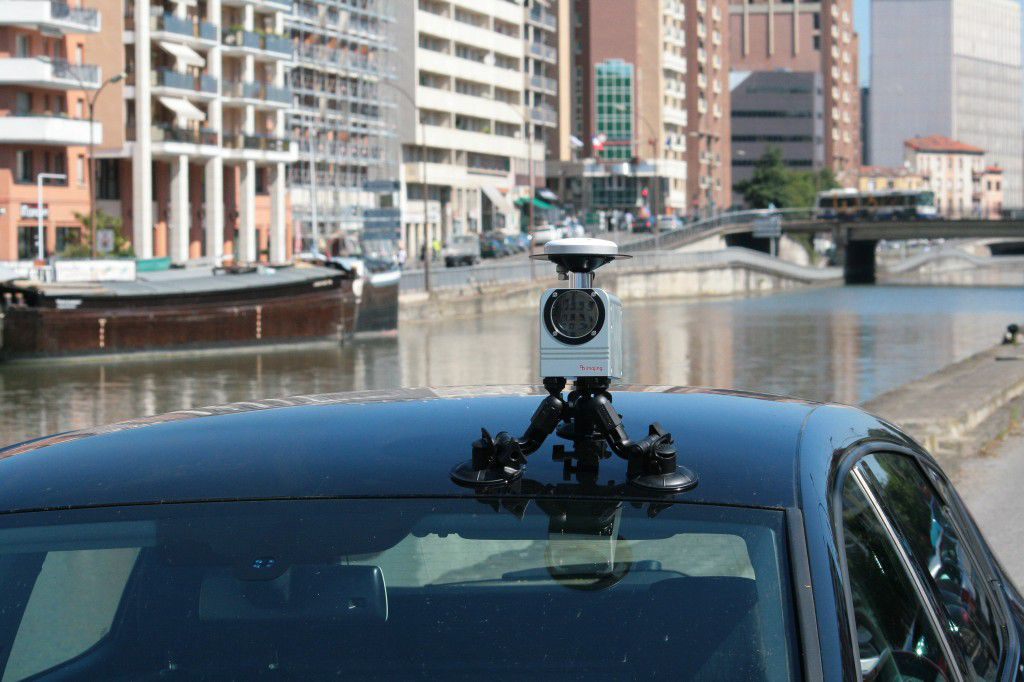

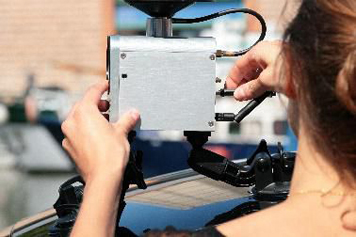

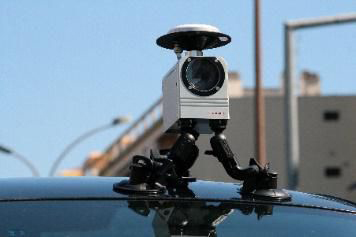

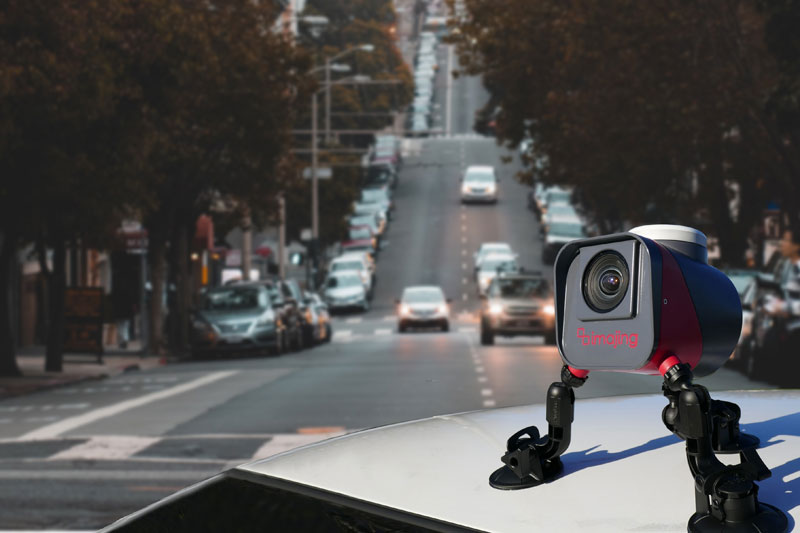

Easy mounting in all directions with the tripod's succion pads.

1 Simple

  • Data storage on USB media
  • Single button to launch a survey
  • Automatic images exposure adjustements
  • No wiring

2 Autonomous

  • Requires neither computer nor internet connection
  • Powered by battery or cigarette lighter
  • Automatically manages various sensors acquisition (gyros, accelerometers, GNSS, barometer, images) to calculate an accurate positioning and orientation solution in any mounting condition, orientation and speed survey

3 Productive

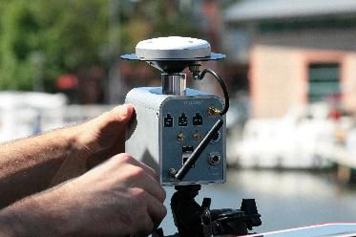

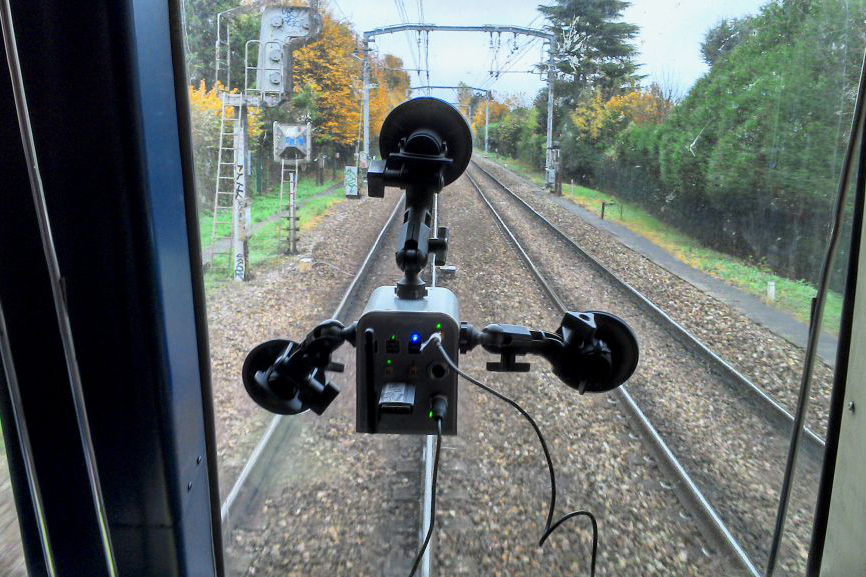

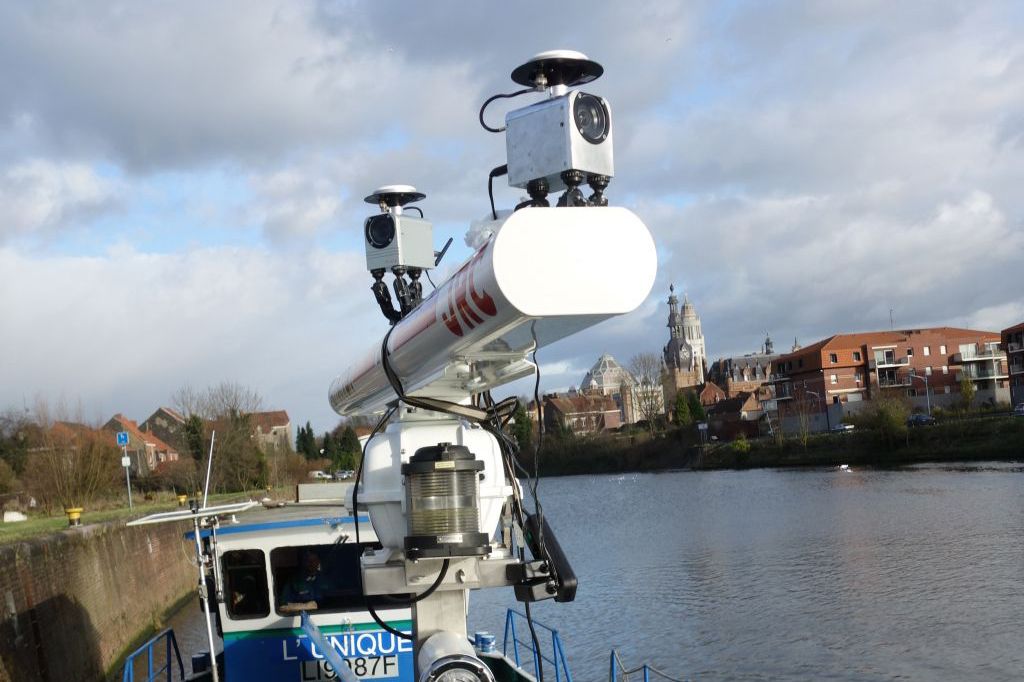

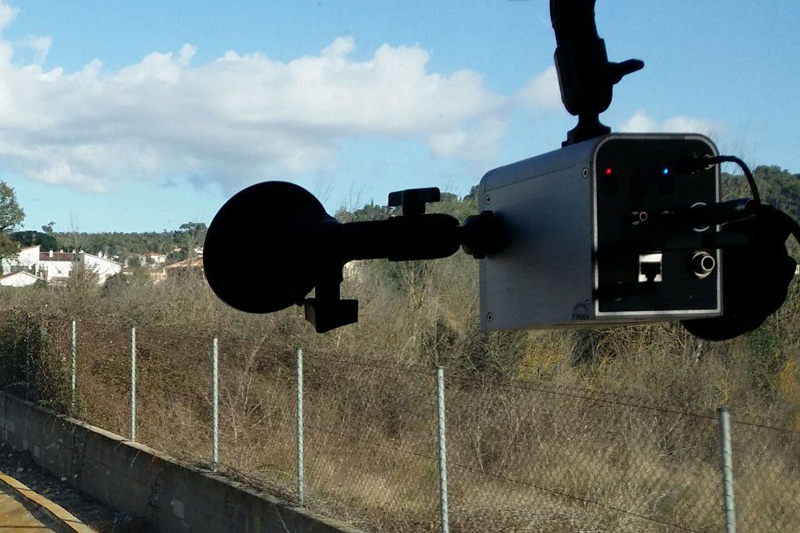

  • Can be mounted on car, train or boat
  • Enables automatic and continuous acquisition to survey from a few hundreds to several thousands kilometers

4 Accurate

  • Raw data (IMU + GPS/GLO + optical flow) processed by proprietary algorithms based on an Extended Kalman Filter (EKF)
  • Handles GNSS multi-path rejection and mitigation
  • Can use sources of differential corrections (dGNSS) and an external speed sensor (Doppler Radar)
  • Can integrate a RTK or PPP external receiver (GPS/GLONASS L1 L2 or TERRASTAR)

5 Connected

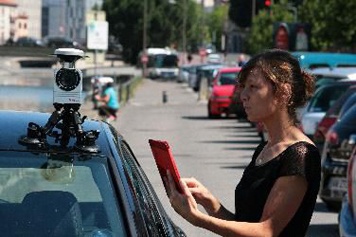

  • Can be launched and controlled in real-time via Wi-Fi from a tablet, smartphone or a computer
  • Can work in a ethernet network with several units connected and centralized on Multiview unit
